Project Description

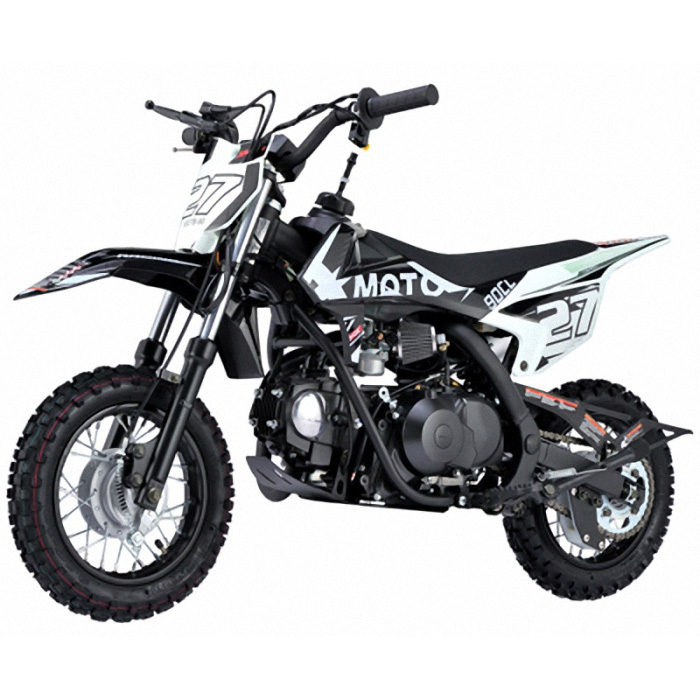

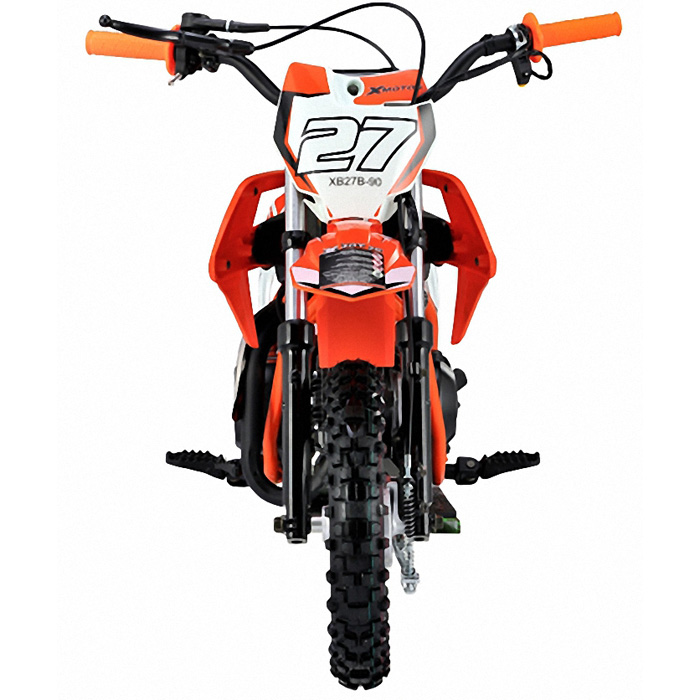

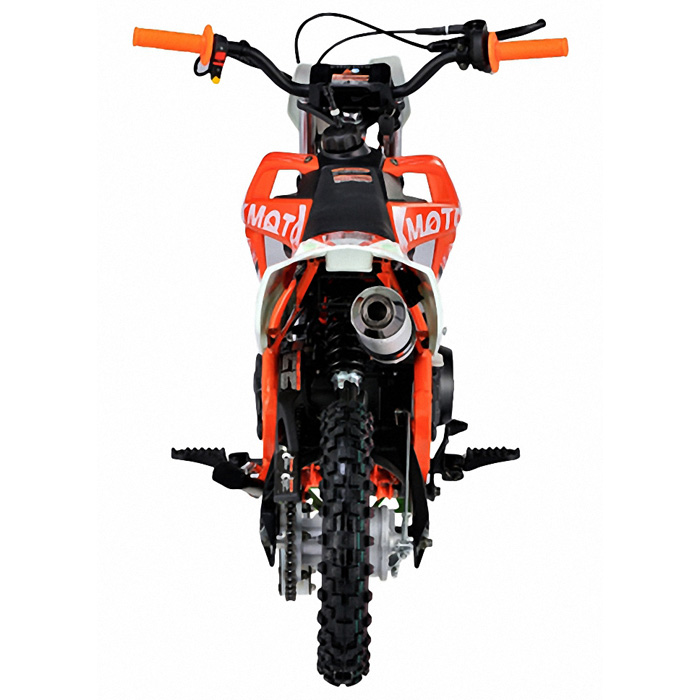

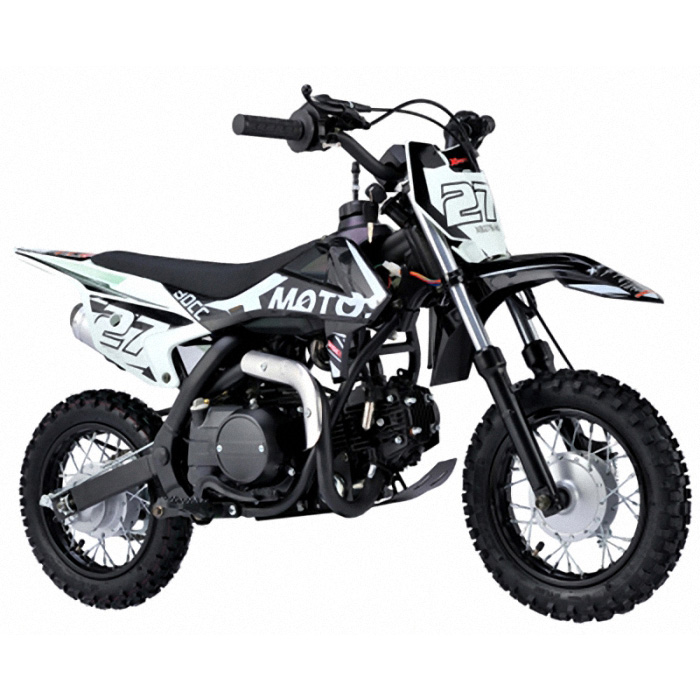

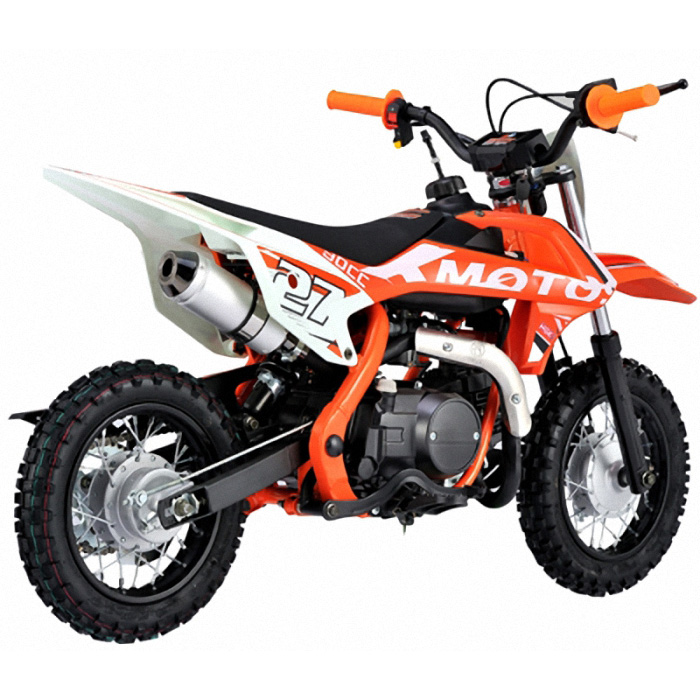

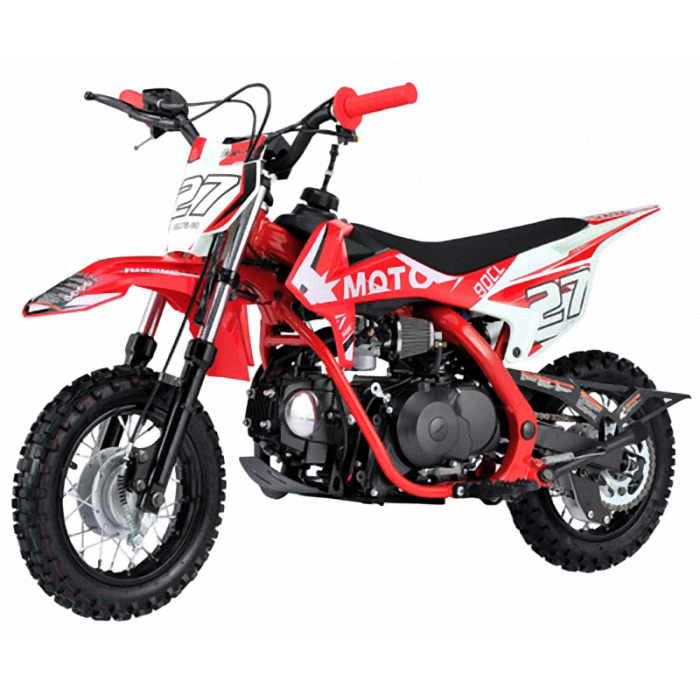

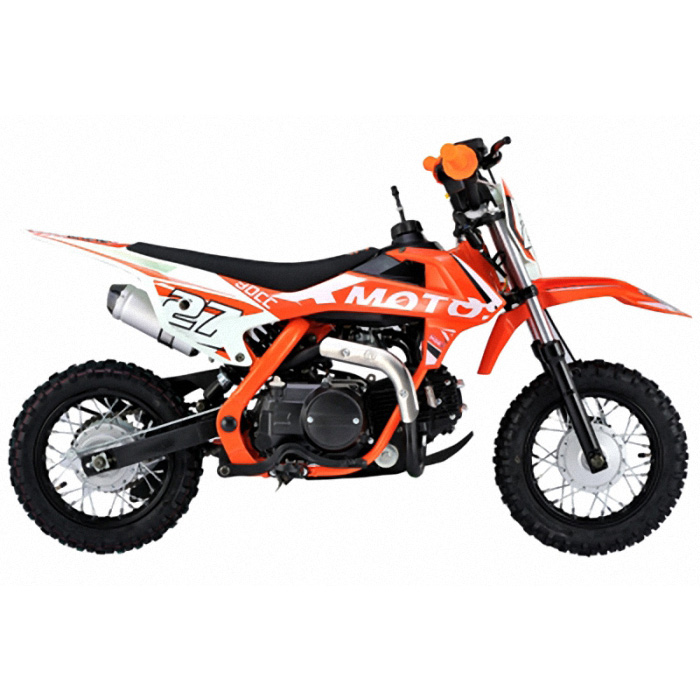

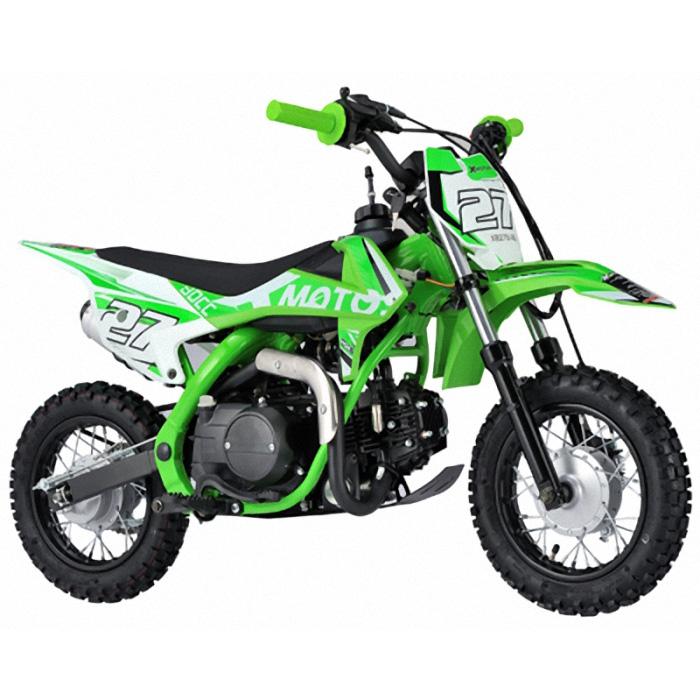

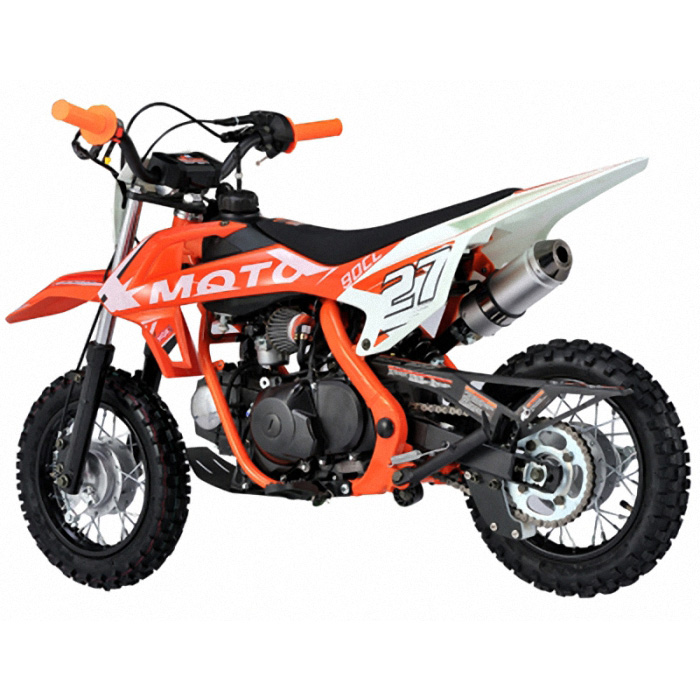

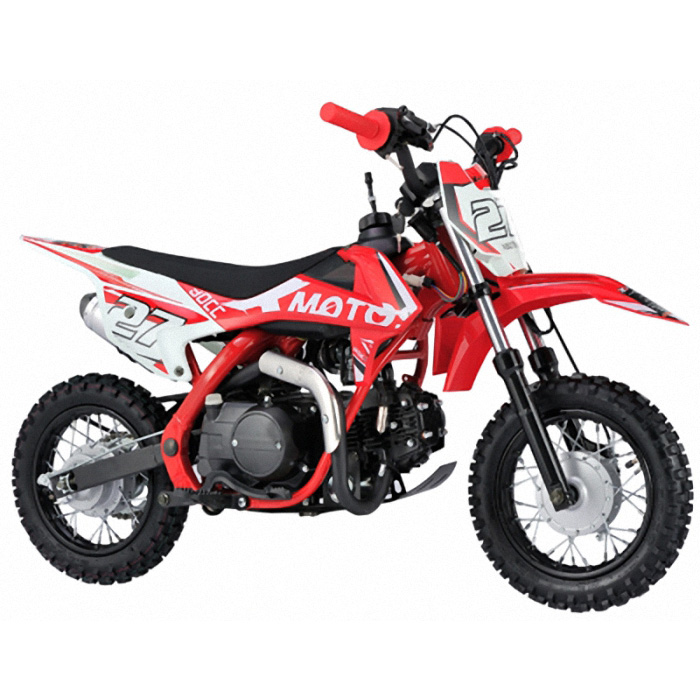

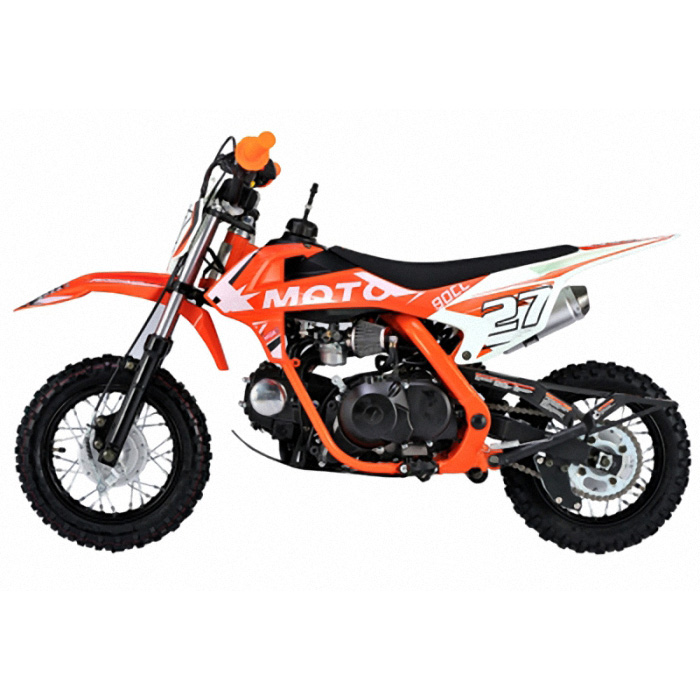

X-27 (90cc,Automatic,10″ Tire)

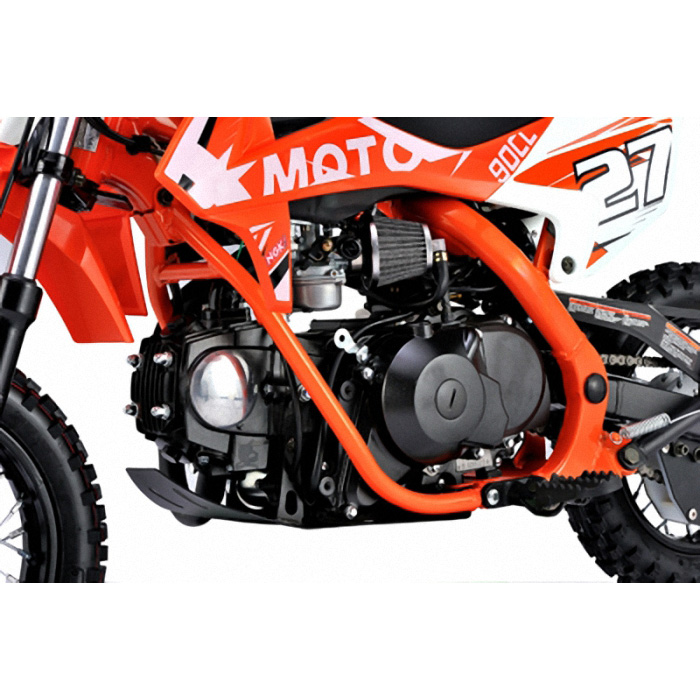

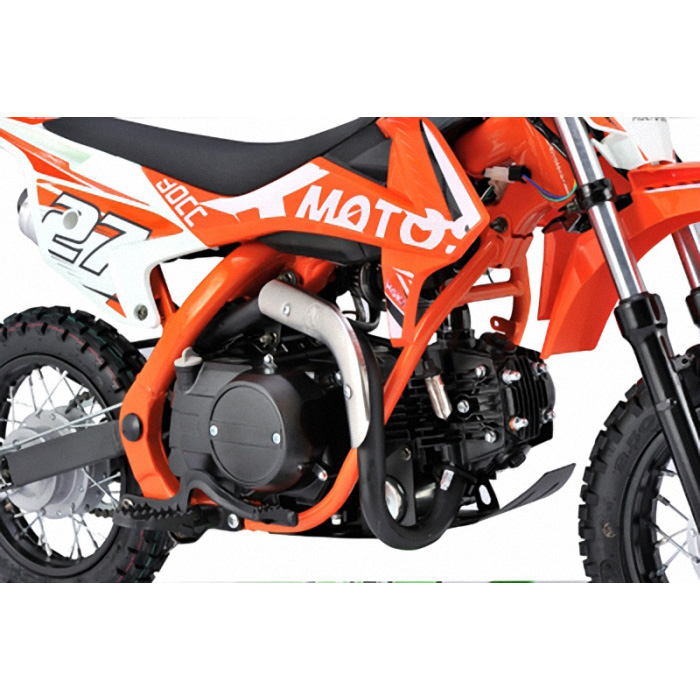

Engine Type: 90cc, 4 Stroke, Automatic

Cylinder: One Cylinder

Cooling System: Air-Cooled

Transmission: Chain Drive

Starting System: Electric Start

Ignition System: CDI

Battery Type: 12V/4AH

Chain: KMC 420

Clutch: Auto Clutch

Speed: 30-40 Mph, *With Speed Governor Screw*

Fuel Tank Capacity:  2.6L

Seat Height: 22”

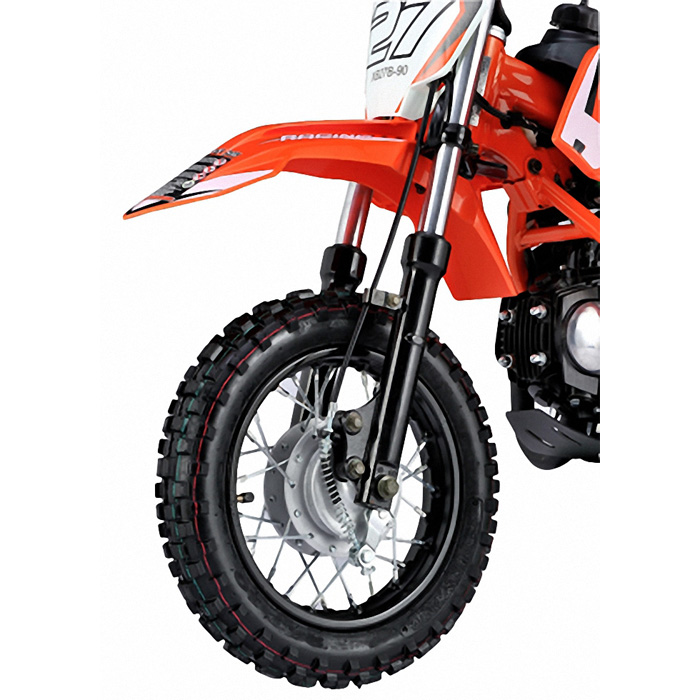

Brake F/R: Drum Brake

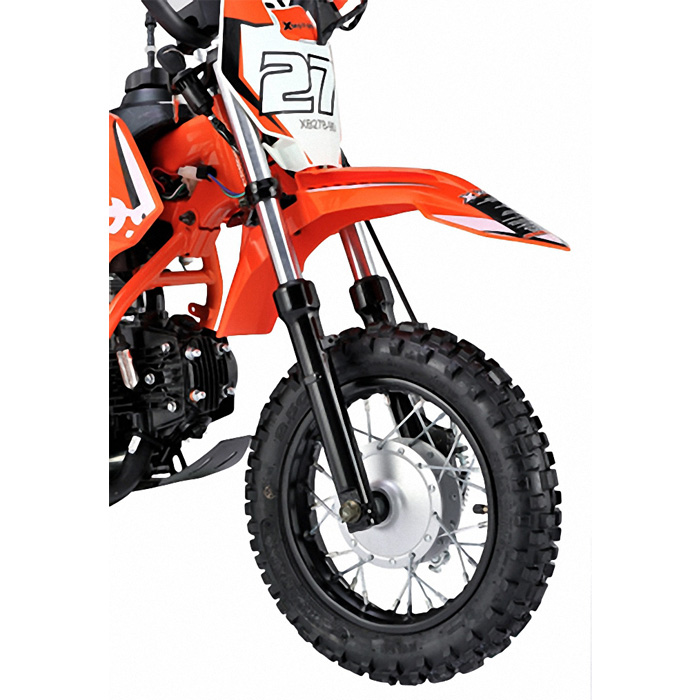

Tire F/R: 2.50-10, **Knobby Tire**

Max Load: 165LBS

Weight: N.W:107 LBS,G.W:137 LBS

Ground Clearance: 160mm

Wheel Base: 950mm

Bore & Stroke: 47×49.5

Packing Size(mm): 1180x380x580

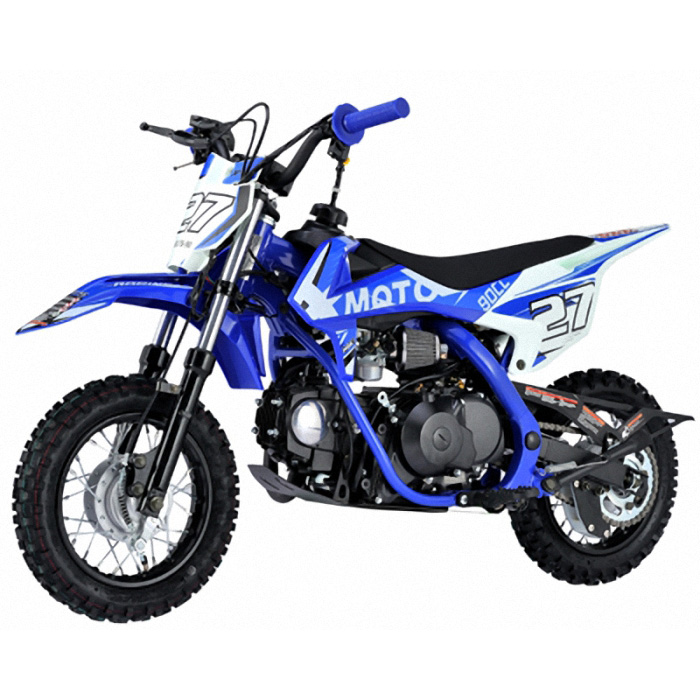

Colors: Black, Blue, Red, Green, Orange
